Catalog | 505-016-001
Bell 505, Radar Altimeter Installation Kit
Bell 505, Radar Altimeter Installation Kit
Bell 505, Radar Altimeter Installation Kit
Bell 505, Radar Altimeter Installation Kit
Bell 505, Radar Altimeter Installation Kit
Bell 505, Radar Altimeter Installation Kit

Bell 505, Radar Altimeter Installation Kit

505-016-001

OEM: Bell
Model: 505
Product Details

Allows the installation of the Garmin GRA 55 LRU with the associated transmit and receive antennas mounted on the tailboom.*

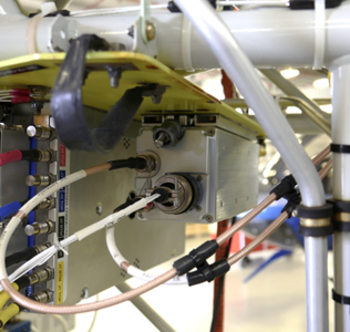

The LRU is installed on the Avionics Shelf located on the truss. The Garmin GRA 55 is a digital radar altimeter providing precise above ground altitude info which is displayed on the G1000.

*Requires Garmin GRA55, sold separately.

Make: Bell

Model: 505

Specifications
  • Part Number:
    505-016-001
  • Nomenclature:
    Bell 505, Radar Altimeter Installation Kit
  • Manufacturer Part Number:
    505-016-001
  • UOM:
    EA
  • Historical Record:
    No
  • Min Quantity:
    1
  • HTS:
  • Flight Safety/Critical:
    Yes
  • Weight:
    4.62 LB
  • ECCN:
  • Hazardous Material:
    No
  • Country Of Origin:
  • no records found
  • Storage Dimensions (Length x Width x Height):
        15.25 x 16.5 x 3.25  IN
