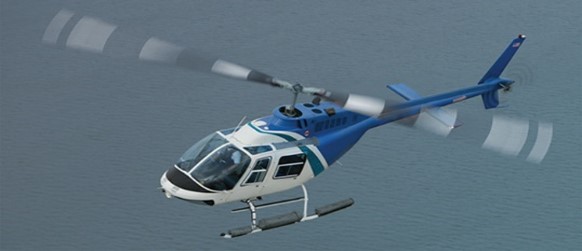

The Bell 206B VHA Composite Main Rotor Blade (High Visibility Black & White) use the same carbon fiber materials and construction methods as VHA's 206B/L tail rotor blades, which have been available as an STC/PMA aftermarket component since 2009. Both blades feature carbon fiber skin and spars, an efficient NASA-designed laminar-flow airfoil, and tapered tip.

The main rotor blade also contains stainless steel and nickel abrasion strips that cover the entire length of the blade for erosion and lightning strike protection. A single trim tab facilitates the track-and-balance process. These main rotor blades use the identical installation configuration as the OEM blades, allowing direct replacement without hub modification. The blades feature an 18,000-hour service life (more than triple the life of the OEM blade).

Additional Features:

FAA STC SR02577LA for 206B JetRanger only (Does not extend to the Augusta Bell A/B206)

Transport Canada STC SH16-46 for 206B JetRanger only

Overhaul required every 2,800 hours (entails replacement of grips, root bolts/nuts and bushings)

Single trim tab for easier tracking and balancing

Efficient NASA RC(4)-10 laminar flow airfoil

Corrosion resistant composite materials

Stainless steel and electroformed nickel abrasion strips cover the entire length of the leading edge for erosion and lightning strike protection

No new equipment needed for installation, tracking or balancing

Approximately same weight and dimensions as OEM blade

Each set shipped with trim tab zeroing tool, set of tie downs, and two blade crates.

Replaces P/Ns: 206-010-200-133, -137, -139, -145, -149, -151

Note: Shipped set requires quantity of 2. Composite blade cannot be paired with a metal blade.

We are currently offering each blade as a special discounted price of $50,000 while supplies last (no other customer discounts apply).

Please submit an RFQ to order or contact sales:

Phone: 800.251.7094 or 423-538-5151

Email: sales@aero-access.com

Make: Bell

Model: 206B
