BETTER BLADES: ONLY FROM AERONAUTICAL ACCESSORIES

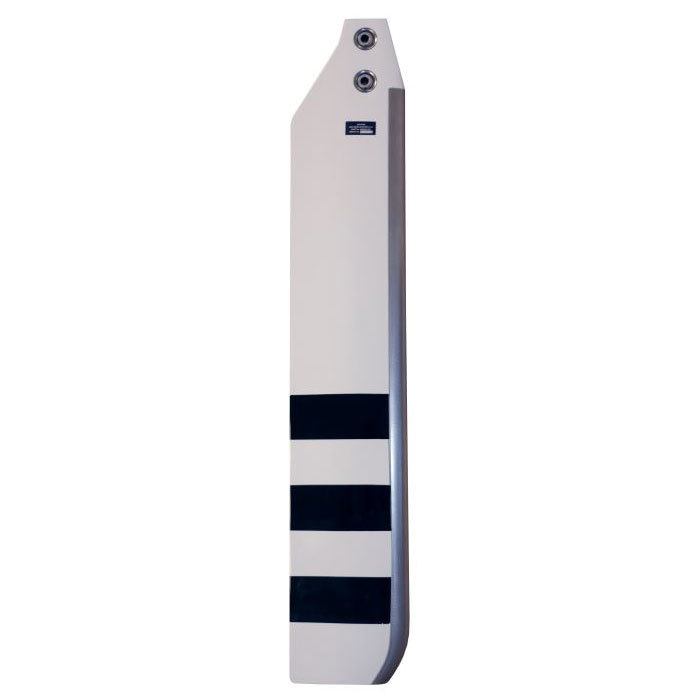

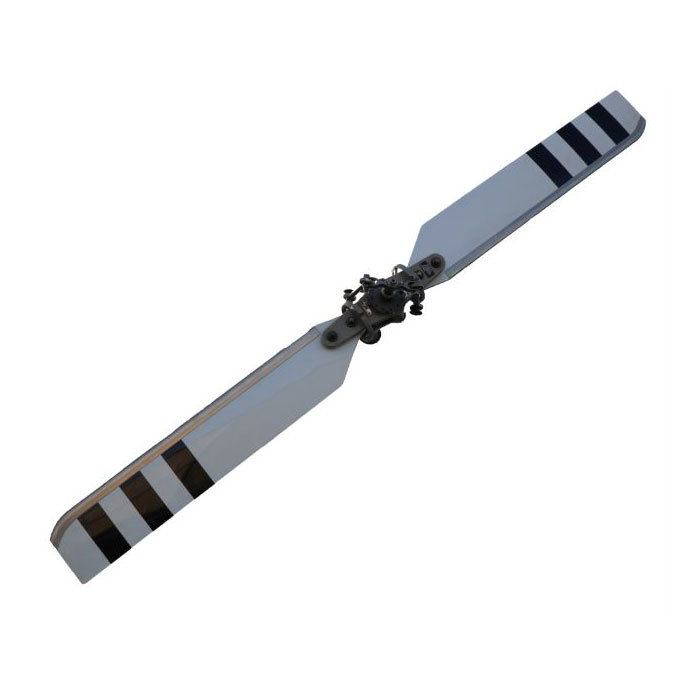

The Aeronautical Accessories brand is the exclusive source for Van Horn Aviation's (VHA) Bell 206B composite main rotor blades and Bell 206 Series composite tail rotor blades. The products feature efficient design, advanced construction, and are produced to the highest quality standards. The advantages to the composite main and tail rotor blades include:

Features:

Efficient, cambered, NASA RC(4)-10 laminar flow, airfoil design that uses less engine power to produce more tail rotor authority

Ruggedly designed with 5,000-hour service lives

40% reduction in overall aircraft noise

15% reduction in centrifugal force resulting in reduced pedal forces

Composite corrosion-resistant construction: carbon fiber skin, foam core, titanium root fitting

Replaceable, electroformed nickel abrasion strip delays erosion effects

Stainless steel pitch bearings minimize unscheduled field maintenance

No new equipment needed for installation, tracking or balancing

Lightning protection mesh

Tail rotor diameter and chord same as OEM blade, plus 10-20 grams lighter

Thickness .101 in (.26 cm) thinner than OEM blade

Three-year/1,500 flight-hour warranty against manufacturing and material defects (excludes damage to erosion)

Make: Bell

Model: 206B,206L,206L-1,206L-3,206L-4,OH-58A+,OH-58C

Note: Shipped set requires quantity of 2. Composite blade cannot be paired with a metal blade.

Please contact sales for pricing and availability.

800.251.7094 or 423-538-5151

sales@aero-access.com

Replaces P/Ns: 206-016-201-131 and -135
