Catalog | 429-462-001

Bell 429 Baggage Area Extender (Baggage Pallet Kit)

429-462-001

OEM: Bell
Model: 429

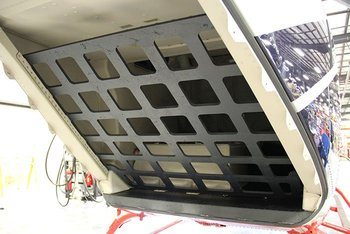

Make use of the empty space over the aft close out fairings in your Bell 429 with this Baggage Area Extender (Baggage Pallet Kit). Benefits: • The 429 Baggage pallet kit is a lightweight system mounted in the rear of the aircraft, over the lower aft faring. • Increases the available cargo volume by 19 ft3 (.5 m3) and the cargo area by 15ft2 (1.4 m2). • Pallet offers a 40 lb (18.1 kg) load capacity. • Large footprint makes it particularly well suited to larger, soft and irregular shaped items such as backpacks, duffle bags, golf bags, and tarps/covers. • Pallet is coated with a non-slip material and can be painted to match the aircraft interior if desired. • Kit includes 6 tiedown rings for restraining the cargo placed on the pallet (straps not included). • Kit acts as a barrier to help prevent items stowed in the standard cargo area from falling on the aircraft’s lower aft faring. • The pallet itself is easily removable for maintenance on the aircraft. Specs: • Weight: 9.6 lbs (Pallet only), 16 lbs installed • 40 lb load limit

  • Part Number:
    429-462-001
  • Nomenclature:
    Bell 429 Baggage Area Extender (Baggage Pallet Kit)
  • Manufacturer Part Number:
    429-462-001

  • UOM:
    EA
  • Historical Record:
    No
  • Min Quantity:
    1
  • HTS:
  • Flight Safety/Critical:
    No
  • Weight:
  • ECCN:
  • Hazardous Material:
    No
  • Country Of Origin:

  • no records found
SR00829DE FAA STC SR00829DE Download
2018S04-08 Brazil 429
SH18-3 Canada 429
10063071 Rev 1 EASA 429
DTB0260 Ukraine 429
