Catalog | 2062200-301

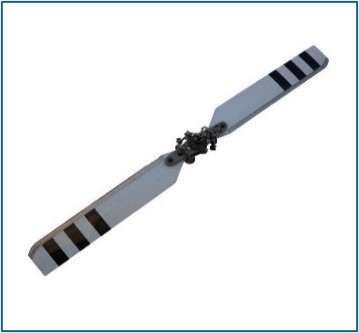

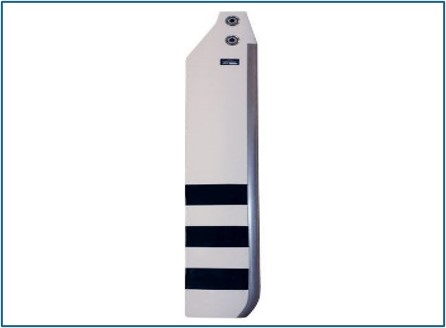

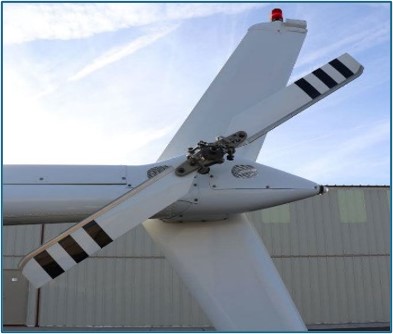

Bell 206 Series, Composite Tail Rotor Blade by Van Horn (QTY 2 required for ship set)

2062200-301

OEM: Bell
Model: 206B, 206L, 206L-1, 206L-3, 206L-4, OH-58, TH-67

Features: Efficient, cambered, NASA RC(4)-10 laminar flow, airfoil design that uses less engine power to produce more tail rotor authority Ruggedly designed with 5,000-hour service lives 40% reduction in overall aircraft noise 15% reduction in centrifugal force resulting in reduced pedal forces Composite corrosion-resistant construction: carbon fiber skin, foam core, titanium root fitting Replaceable, electroformed nickel abrasion strip delays erosion effects Stainless steel pitch bearings minimize unscheduled field maintenance No new equipment needed for installation, tracking or balancing Lightning protection mesh Tail rotor diameter and chord same as OEM blade, plus 10-20 grams lighter Thickness .101 in (.26 cm) thinner than OEM blade Three-year/1,500 flight-hour warranty against manufacturing and material defects (excludes damage to erosion)

  • Part Number:
    2062200-301
  • Nomenclature:
    Bell 206 Series, Composite Tail Rotor Blade by Van Horn (QTY 2 required for ship set)
  • Manufacturer Part Number:
    2062200-301

  • UOM:
    EA
  • Historical Record:
    No
  • Min Quantity:
    1
  • HTS:
  • Flight Safety/Critical:
    Yes
  • Weight:
    2.23 LB
  • ECCN:
  • Hazardous Material:
    No
  • Country Of Origin:

  • no records found
SR02249LA FAA STC SR02249LA Download
2012S09-07 Brazil 206B,206L-1,206L-3,206L-4
SH10-22 Canada 206B,206L,206L-1,206L-3,206L4
10039278 EASA 206B,206L-1,206L-3,206L-4
STC-434-TYO Japan 206B
